TMY [Y axis structure]


A spheroidal cast iron structure, a robust design in all its parts and a strong hydraulic brake guarantee
to TMY system all the needed rigidity for operations both with rotating and fixed tools.


› High stiffness and accuracy thanks to the structure configuration
and slide-way sizing
› Hydraulic clamping system to grant max rigidity for turning operations
› High strokes and feed forces

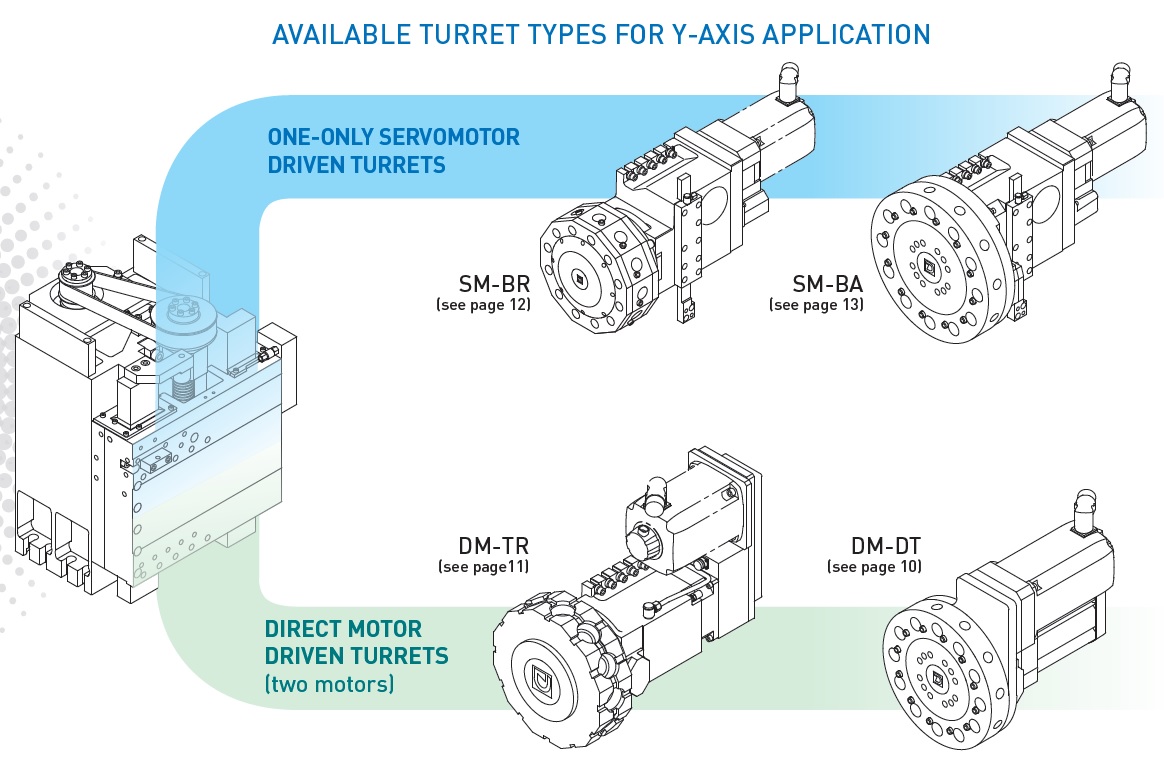

› Modular concept for different turret types applications

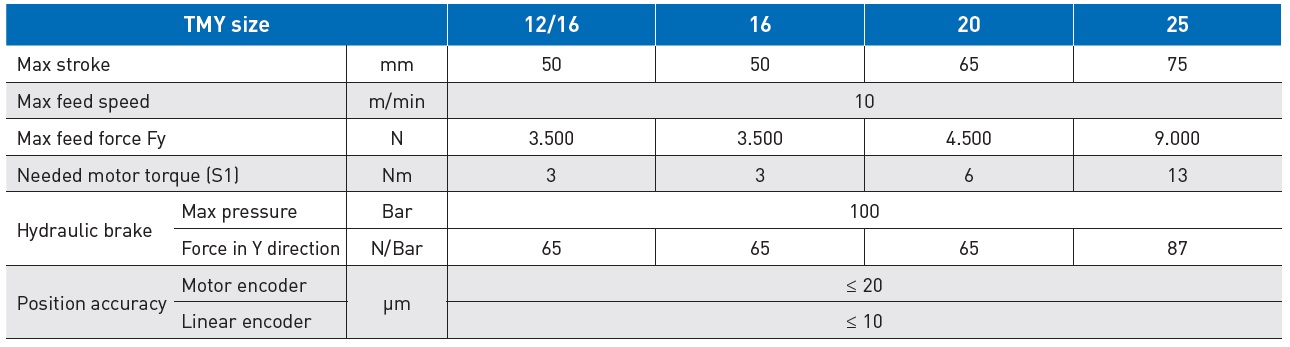

Technical information I.T. 6471
